Automatic bag placer for packing machine

Name: Automatic bag placer for packing machine
Uploaded: 2023-08-25T15:43:50+08:00
Duration: 1 min 50 s
Description: 1, Bag picking and placing speed: 240-280 bags per hour2, The process of placing bags on the packing machine is fully automated.3. Bags cart could keep 50-150 bags once (according to bag thickness)

1, Bag picking and placing speed: 240-280 bags per hour

2, The process of placing bags on the packing machine is fully automated.

3. Bags cart could keep 50-150 bags once (according to bag thickness)

SEND INQUIRY NOW

INFORMATION

Description

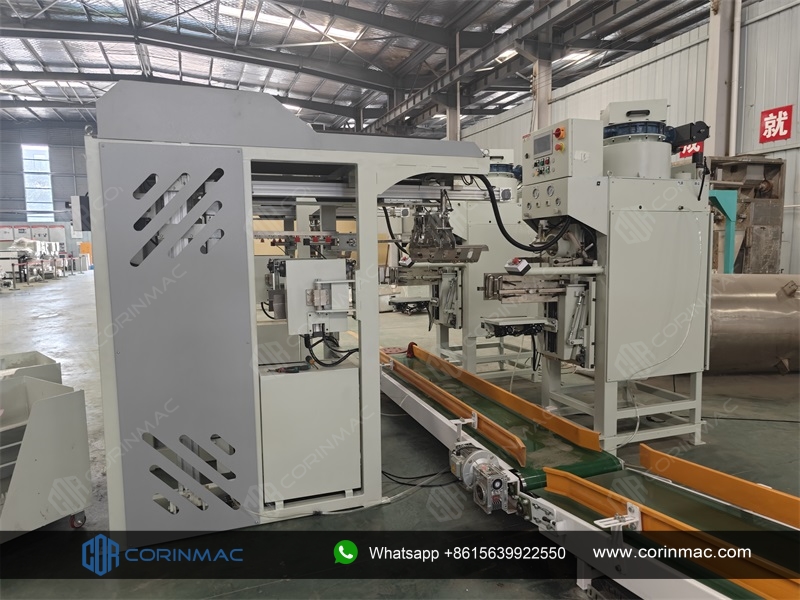

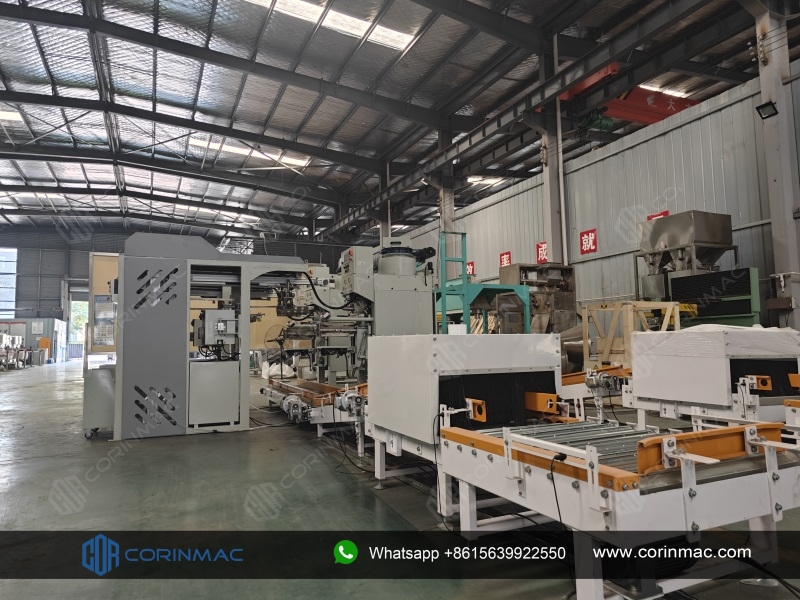

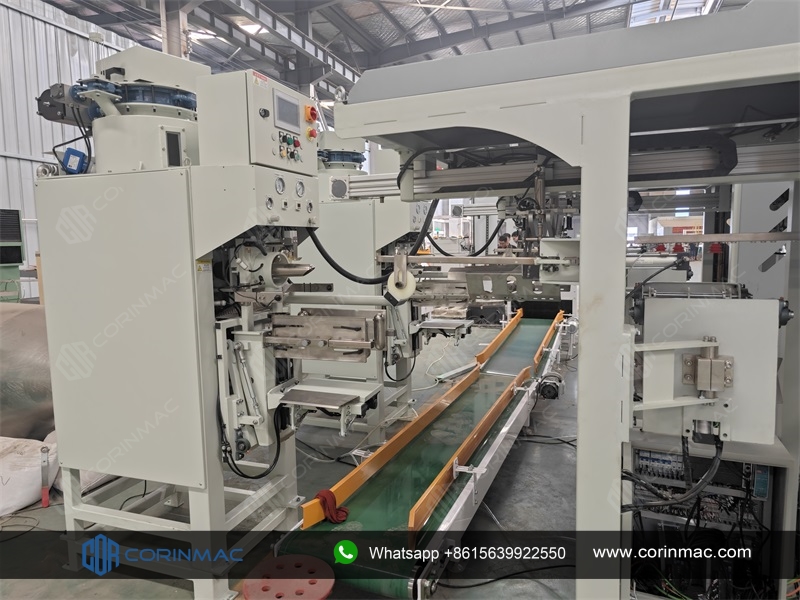

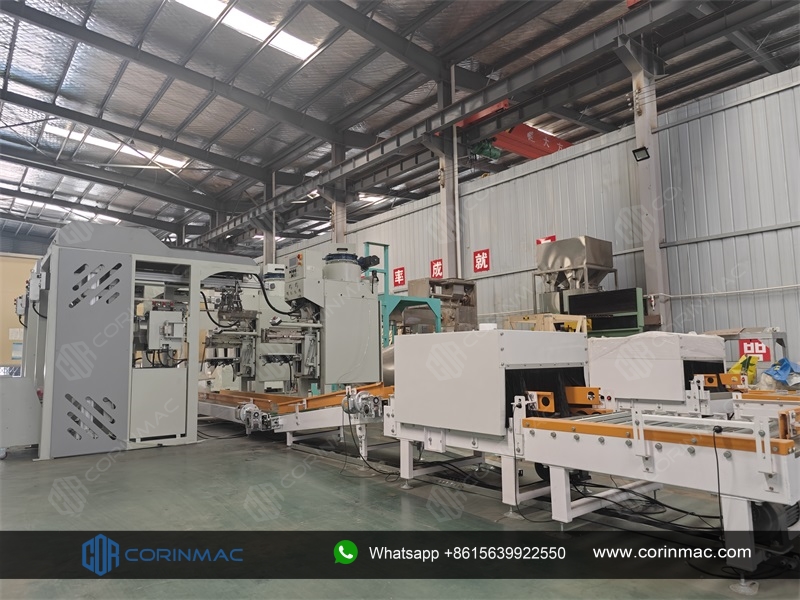

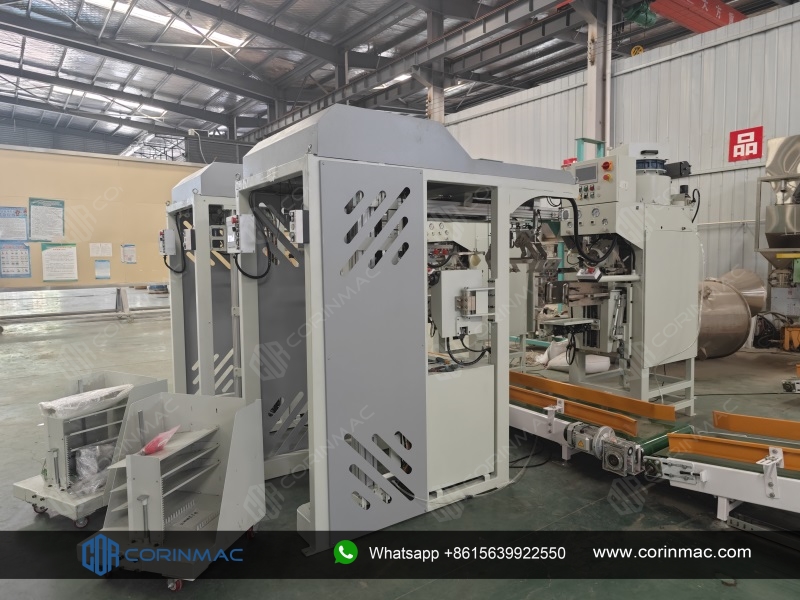

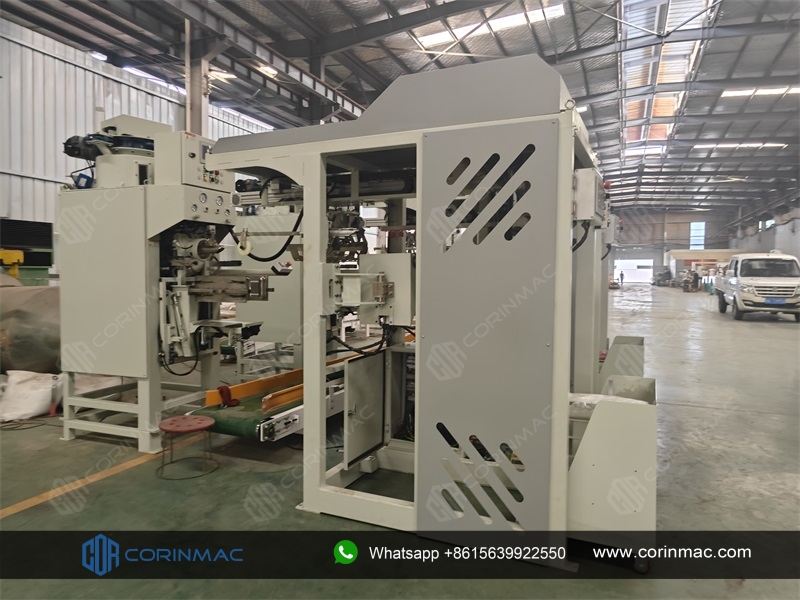

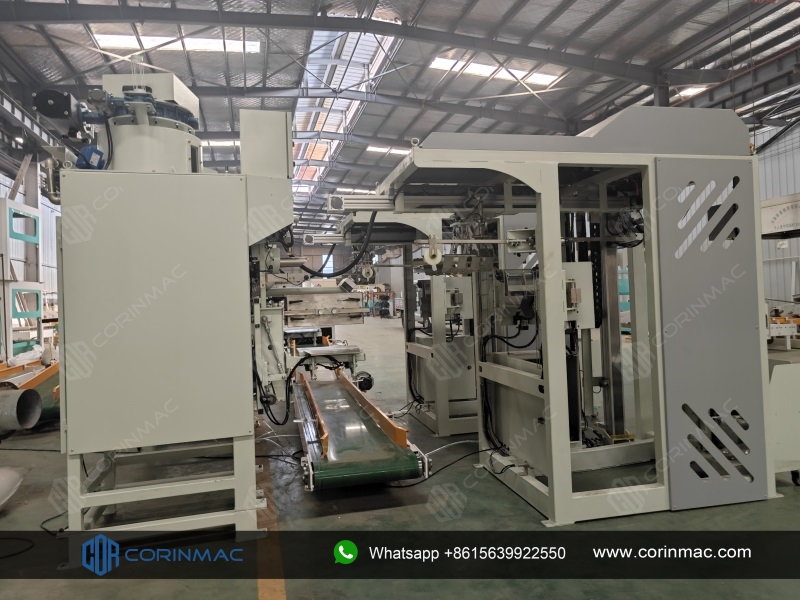

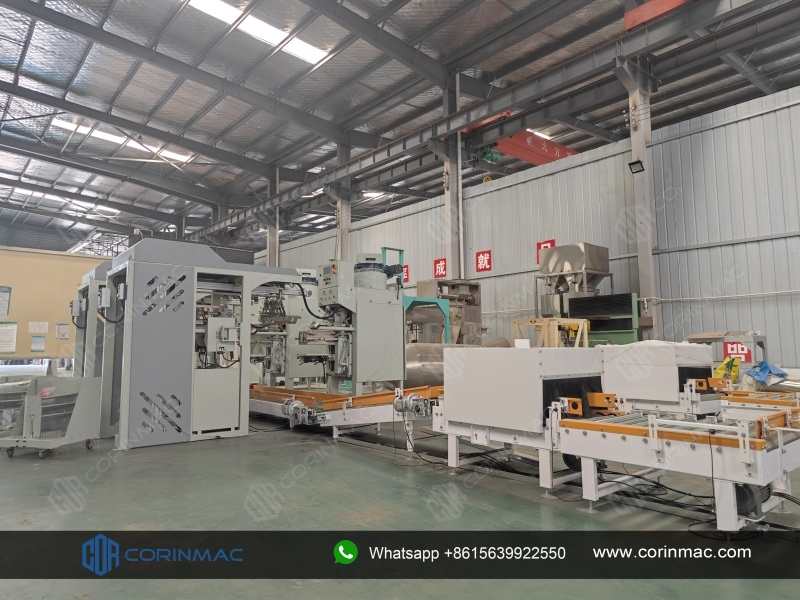

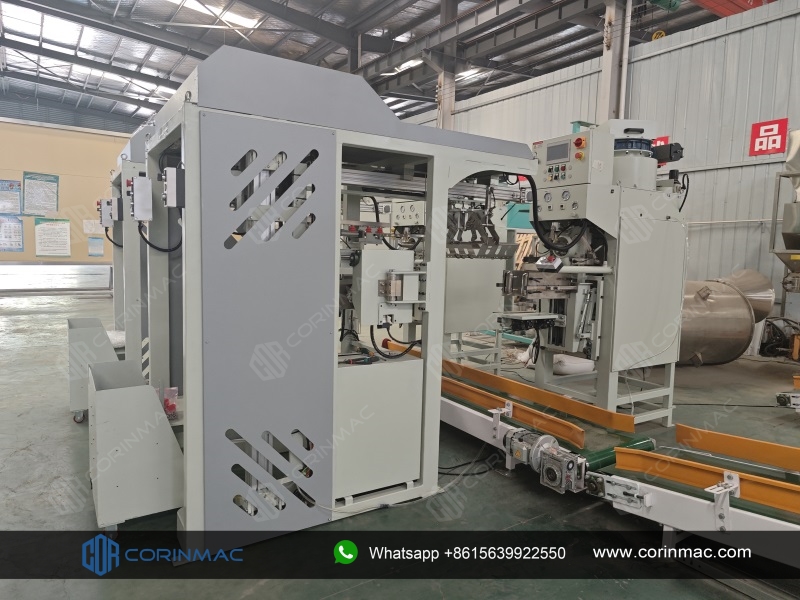

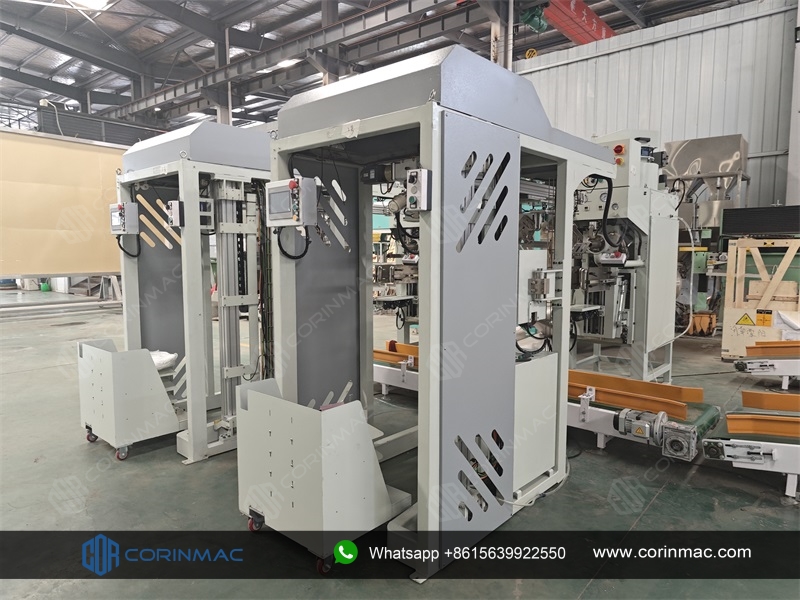

The bag placer can automatically complete the whole process of picking up the bag, lifting the bag to a specific height, opening the valve port of the bag, and placing the bag valve port on the discharge nozzle of the packing machine. The automatic bag placer consists of two parts: Bag cart and host machine. Each bag placer (bagging machine) is equipped with two bag carts, which can alternately supply bags to ensure that the bag placer can achieve uninterrupted continuous operation.

The bag placer is fully automatic controlled by PLC, and can be connected with the packaging machine PLC, so that the parameters of the whole process from bag placing to material filling into bags can be set only through the bag placer PLC control panel. Multiple bag placers and packaging machines can also realize PLC linkage.

Features and Benefits

● From bag picking up to place bag on packing machine, the whole process is designed reasonably.

● Start from pick up bag, lift bag, open the bag valve, to put the bag on the discharge nozzle of the packing machine, the whole process is smooth.

● The speed of each step is adjustable to meet different output requirements.

● It running is stable and the fail rate is extremely low.

● PLC automatic control, easy to operate, and can be linked with packing machines and other equipment.

Video

Company's production capabilities

Certificates

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Automatic Impeller Packing Machine for Valve Bag

Designed for automatic filling of bulk or granular products into valve bags.
Valve bag filling machine - Valve bag packing machine

Packing weight: 10-60kg per bagFilling Accuracy : ≤±0.6%Packing speed: 200-280pcs/h for cement 25kg.Max. Material size:5mmPneumatic source: Pressure≥0.5MpaNozzle diameter : standard φ63mm, can be made upon request.Bag opening size: ≥φ70mm(standard)Feed port of packing machine : φ300mm
Column Palletizer (Mini Palletizer)

Capacity：~500-600 bags per hourFeatures & Advantages:1. Very compact size2. The machine features a PLC-controlled operating system.3. Through special programs, the machine can perform virtually any type of palletizing program.
High position palletizer

Capacity：500~1200 bags per hourFeatures:1. High palletizing speed, up to 1200 bags/hour.2. The palletizing process is fully automatic.3. Random palletizing is possible, which is suitable for the characteristics of many types of packages and various types of coding.4. Low power consumption, beautiful stacking shape, saving running costs.
