Mini-plant for the production of dry mixes 3-5t / h

Message

Product description:

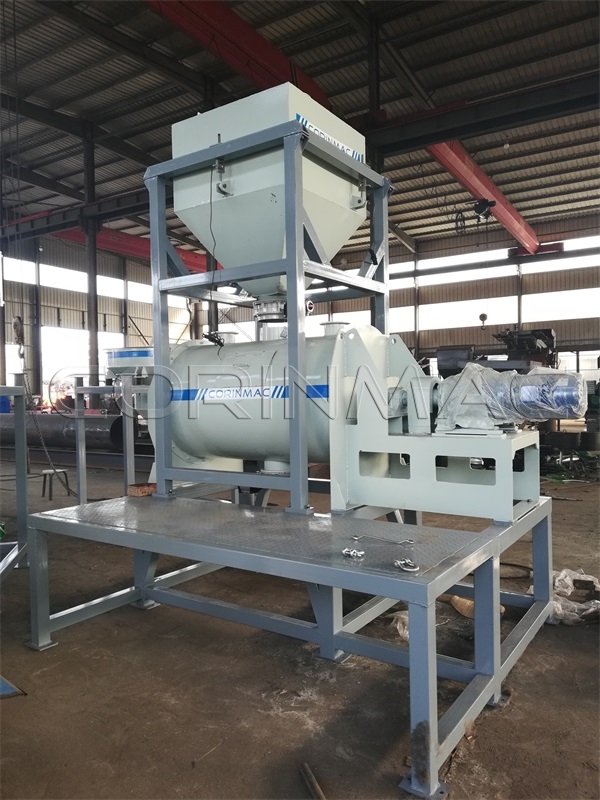

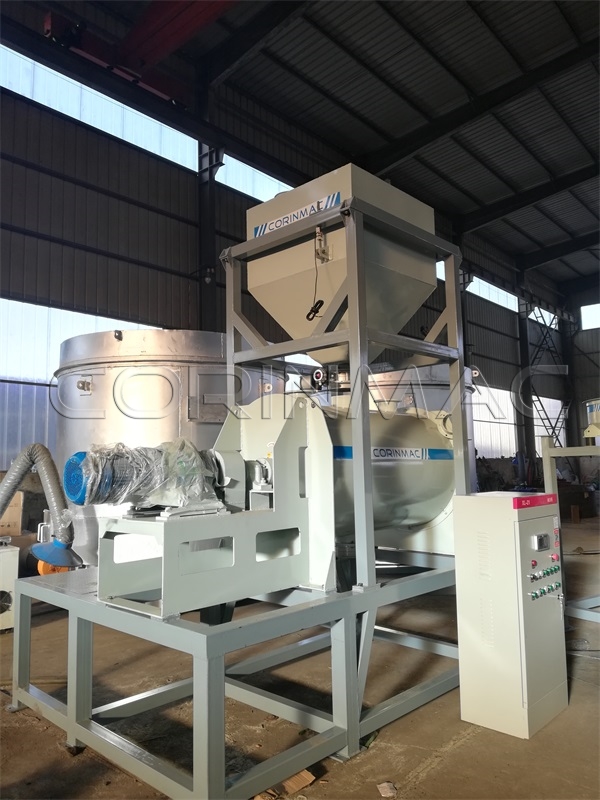

The 3-5 ton dry mix mortar production line consists of a raw material silo, a screw conveyor, a weighing silo, a ribbon mixer, a finished product silo, and a packaging machine. We provide customers with two production solutions, namely horizontal production line and vertical production line. This production line is an improved production line of simple line, suitable for the production of powder products such as dry mortar, putty powder, etc. Relative to the simple line, the production line has added a weighing system and a PLC intelligent control system, which can realize automatic batching and production, save labor and improve productivity. It has the advantages of small area cover, low investment cost, convenient maintenance and high production efficiency.
-If local environmental protection requirements are strict or you need to reduce dust in the workplace and improve the working environment of the workers, you can add a dust removal system during the production process.
-If you need to dry and sieve sand, you can also add dryers and classifying screen.
The above is the basic configuration of 3-5 tons dry mortar production line. If you have special configuration requirements, you can provide us with your ideas, requirements, working environment and site conditions, and our engineers will design a targeted configuration plan as soon as possible.

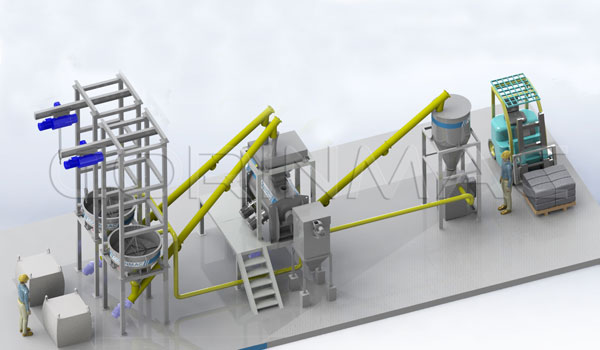

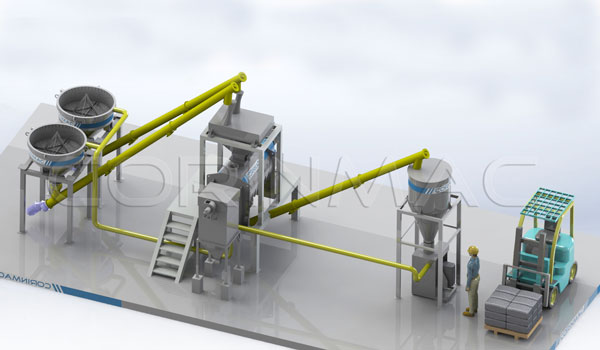

1. Horizontal production line plan


Equipment options Model Qty. (set)       Power(kw)    Remarks

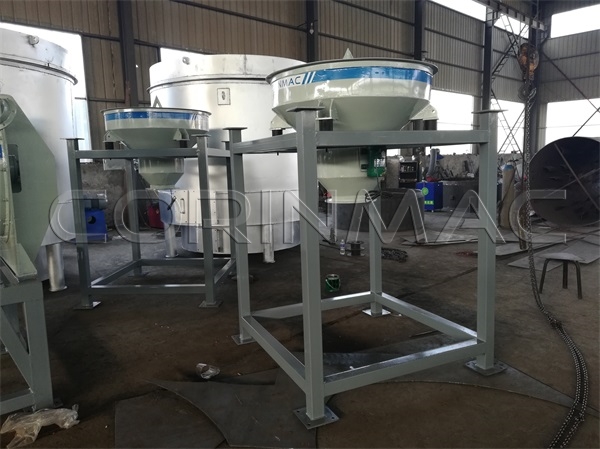

Raw material supply Electric hoist bag breaker PT-500 According to customer requirement     0.15
Bag Breaker P-500 0.15
Cement silo 30-50т ---
Sand silo 30-50т
Screw feeder LSY165          According to requirement 3

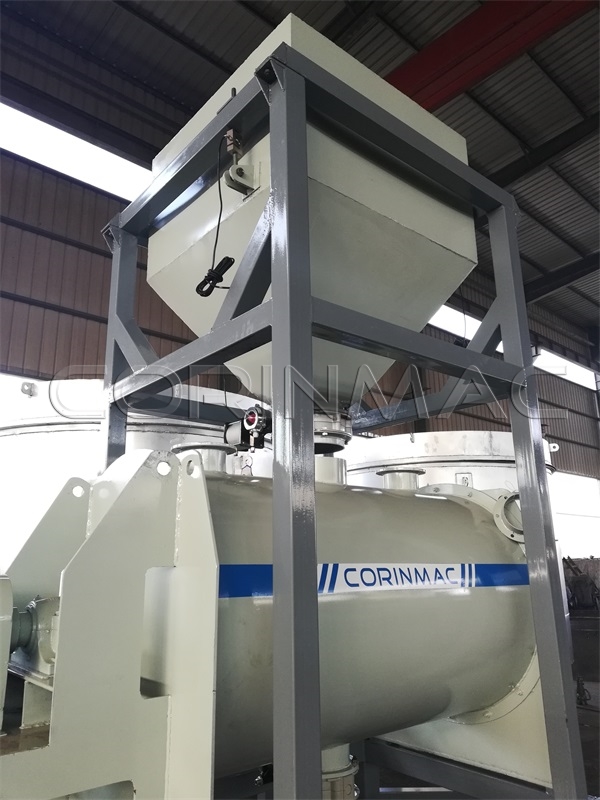

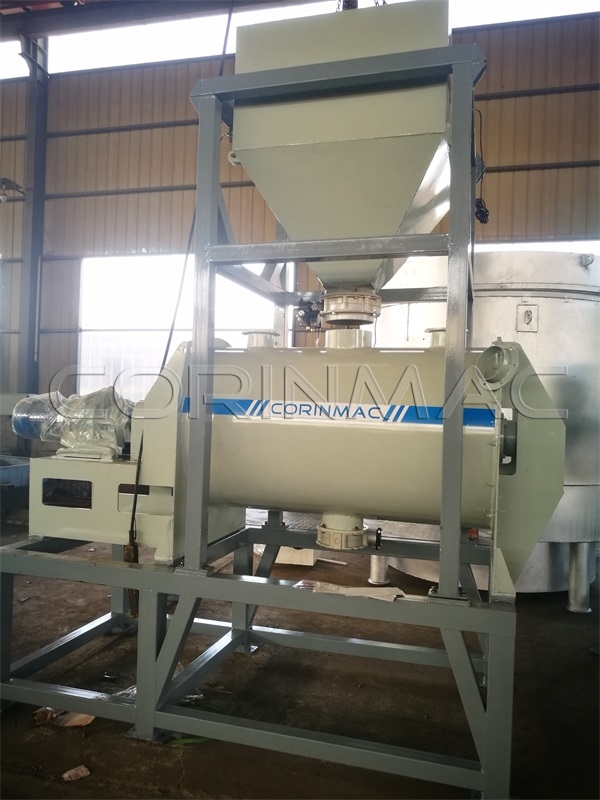

Automatic weighing CLX-1 1set ---

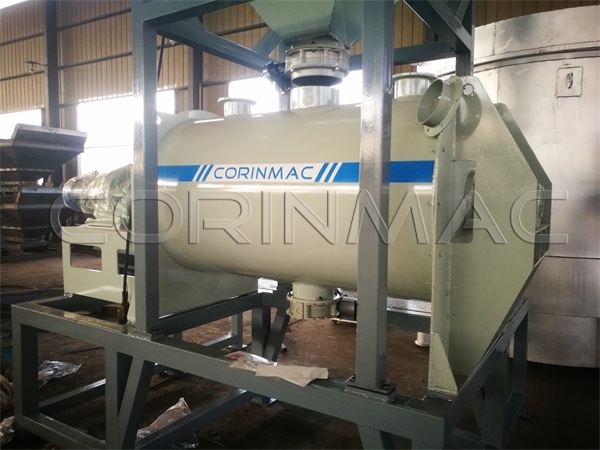

Main machine Single shaft coulter mixer LD-1 1set 11+(2.2*2) Choose one according to your requirements
     Double-shaft gravity-free mixer JW-1 11
Screw feeder LSY165 According to requirement 3

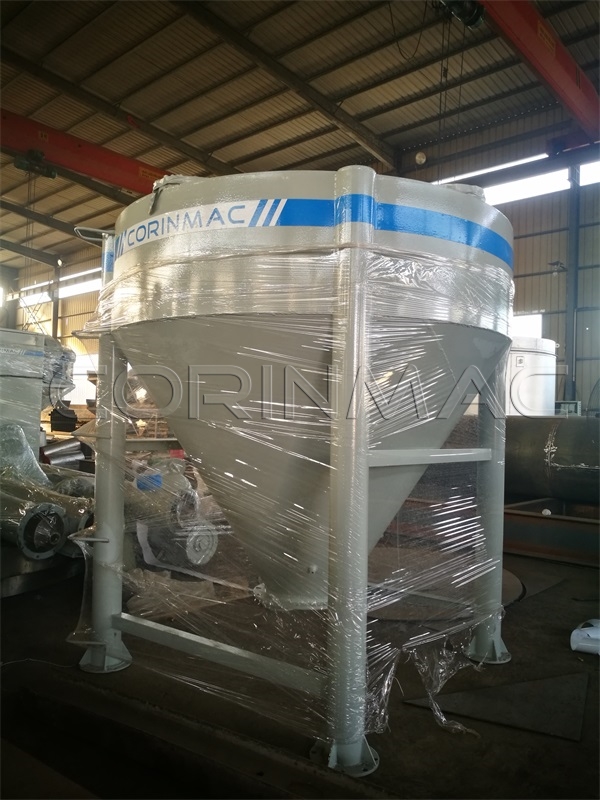

Finished product warehouse 2 m³ 1set ---
Packing machine  F-JX-1 1set 3
Control cabinet   1set --
Air compressor 0.9m³ 1set 7.5

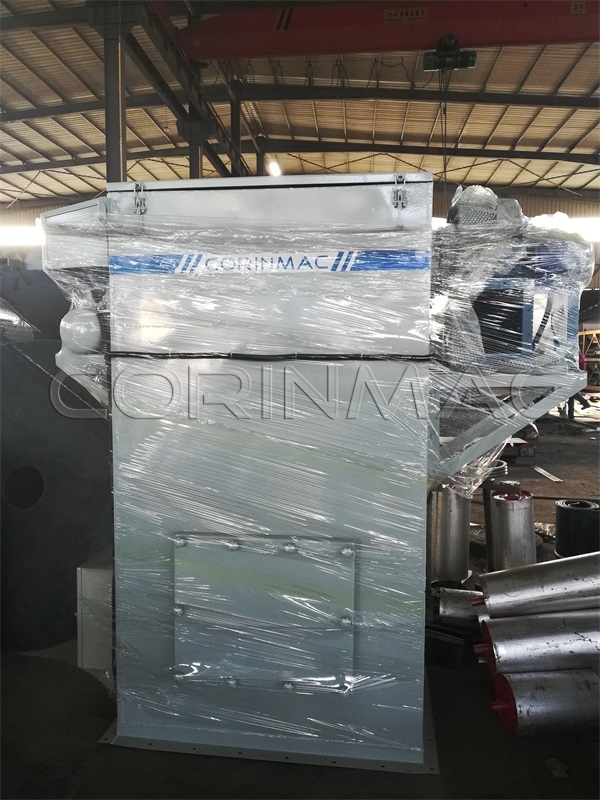

Dust collector DMC-18 1set 1.5 Additional options



Single shaft coulter mixer and ordinary bag breaker

Single shaft coulter mixer and electric hoist bag breaker

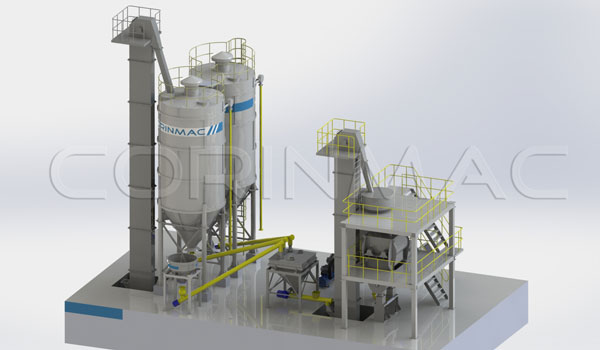

2.Vertical production line plan


Equipment options Model Qty. (set)       Power(kw)    Remarks
Raw material supply Electric hoist bag breaker PT-500 According to customer requirement  0.15
Bag Breaker P-500 0.15
Cement silo 30-50т ---
Sand silo 30-50т
Screw feeder LSY165 According to requirement 3

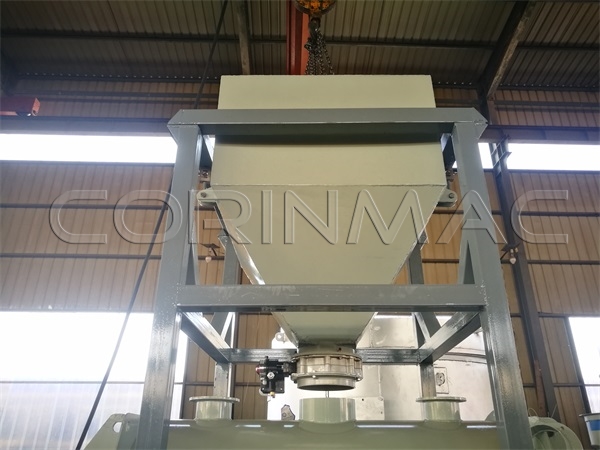

Weighing bin CL-1 1set 2.2
Elevator TH140x7.5m 1set 3
To mix warehouse 1cc 1set --- Additional options
Main machine Single shaft coulter mixer LD-1 1set 11+(2.2*2)  Choose one
     Double-shaft gravity-free mixer JW-1 11
Finished product warehouse 2 m³ 1set 5.5
Packing machine  F-JX-1 1set 3
Control cabinet   1set --
Air compressor 0.9m³ 1set 7.5
Dust collector DMC-18 1set 1.5 Additional options


Vertical option

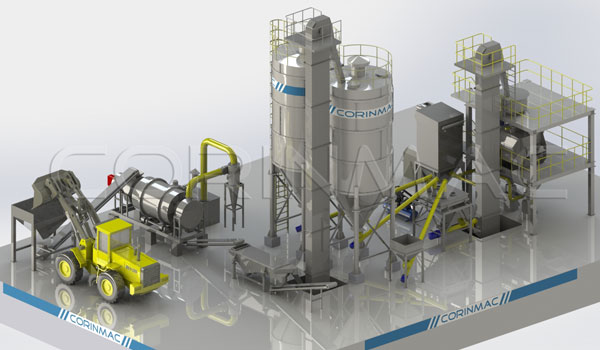

Vertical version with drying complex
